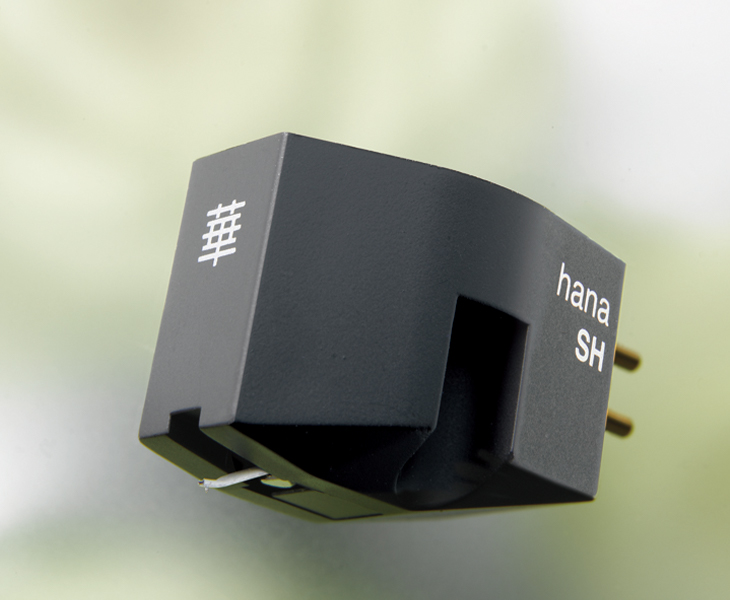

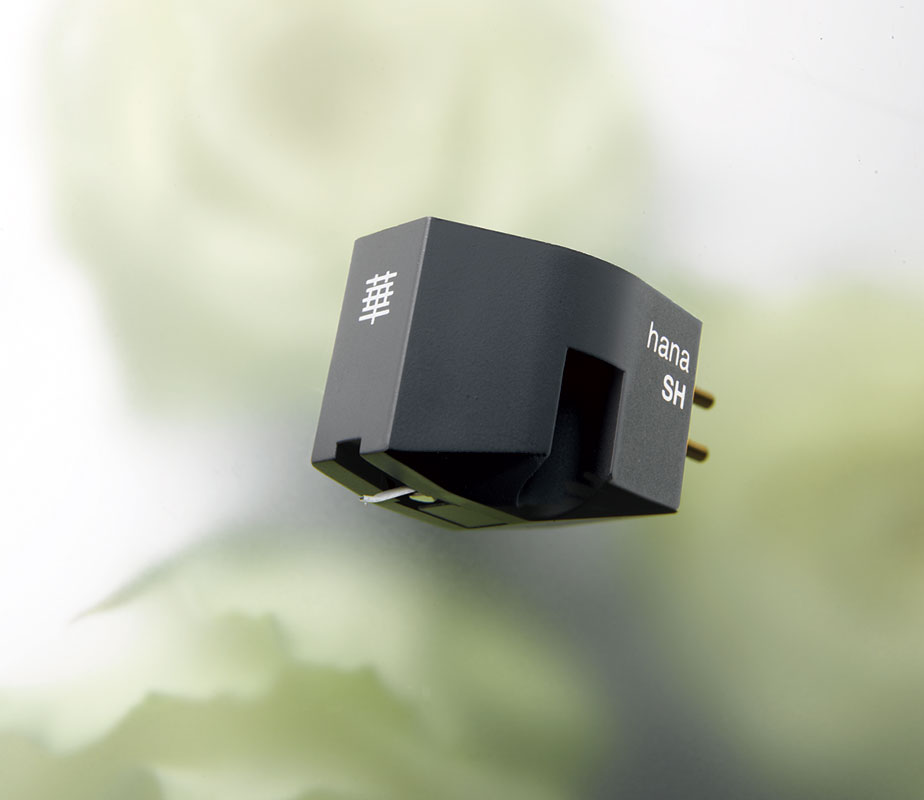

HANA SH CARTRIDGE
“When pitted against its low-output sibling, the SH gives a comparable performance…Both are superb cartridges and are strong challengers to rival big-name brands at the price.” – Hi Fi Choice UK
“If you only have a moving magnet input on your amp or preamp then the high output version is a no brainer.” – Ian Ringstead, HiFi Pig UK
ABOUT
The Hana SH combines high output with high resolution, courtesy of its special coil design and Shibata stylus. Compatible with standard MM phono stages, a high-output MC provides dynamics, drive, and excellent stereo imaging.
With over 50 years experience in cartridge design and manufacture, Excel Sound builds many of the most highly regarded high-output MC cartridges.
SPECIFICATIONS
| Stylus | Nude Diamond Shibata |
| Cantilever | Aluminum |
| Output Level | 2mv/1kHz |
| Output Balance | <1.5dB/1 KHz |
| Vertical Tracking Force | 2g |
| Trackability | 70 µm/2g |
| Channel Separation | 28dB/1kHz |
| Frequency Response | 15-32,000Hz |
| Impedance | 130Ω/1kHz |
| Suggested Load Impedance | 47KΩ |
| Weight | 5g |
| Height | 15mm |
| Body Color | Black |
| Warranty | 2 years |
DOWNLOADS
| Hana SH Instruction Manual |
