DS AUDIO E3 EQUALIZER
"Truly beyond price. The DS-E3 is a revolutionary technology in historic record reproduction."
Ikuo Kakuta, Audio Critic
ABOUT
New Amplification and Power Supply Circuits
The DS-E3 equalizer's amplification circuit has been made symmetrical, and the voltage supplied to the cartridge has been stabilized to achieve a clearer and faster sound.
Miniaturization is achieved by using an operational amplifier
The DS-E3 equalizer uses an operational amplifier as the amplifying element to minimize the signal path, thereby greatly reducing the number of components and achieving a smaller size. As a result, the DS-E3 equalizer is about 1/3 the size of the DS003 equalizer.
SPECIFICATIONS
| Output Voltage | 500mV (@1kHz) |
| Output Impedance | 120Ω |
| Input Impedance | More than 10kΩ |

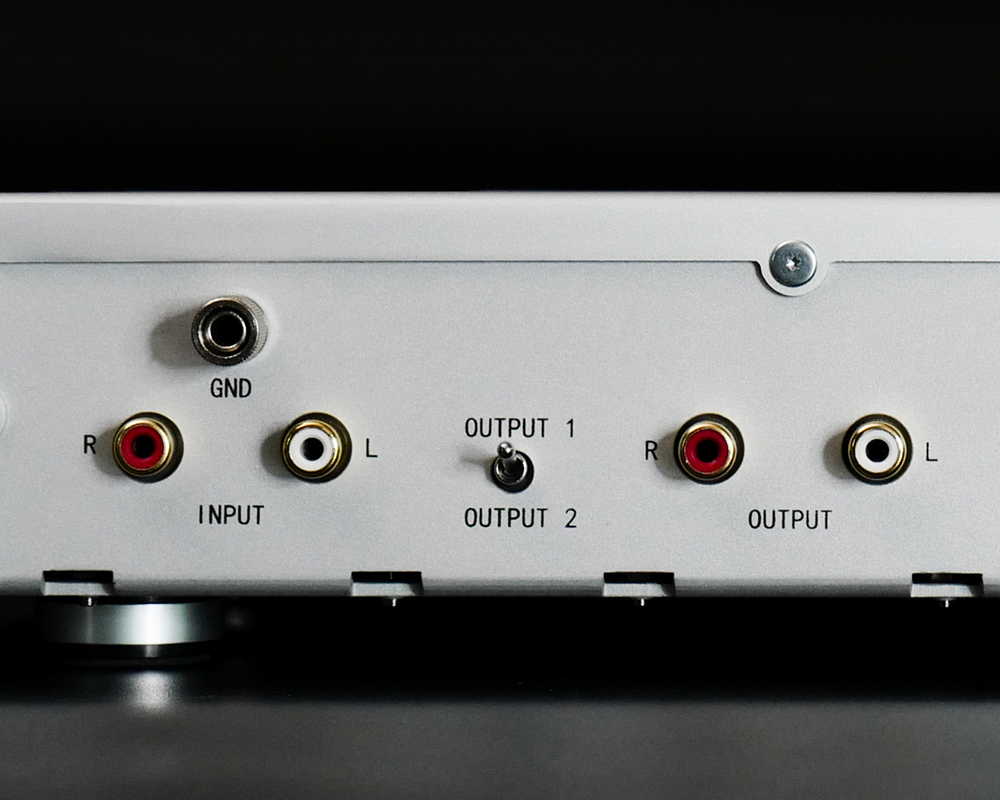

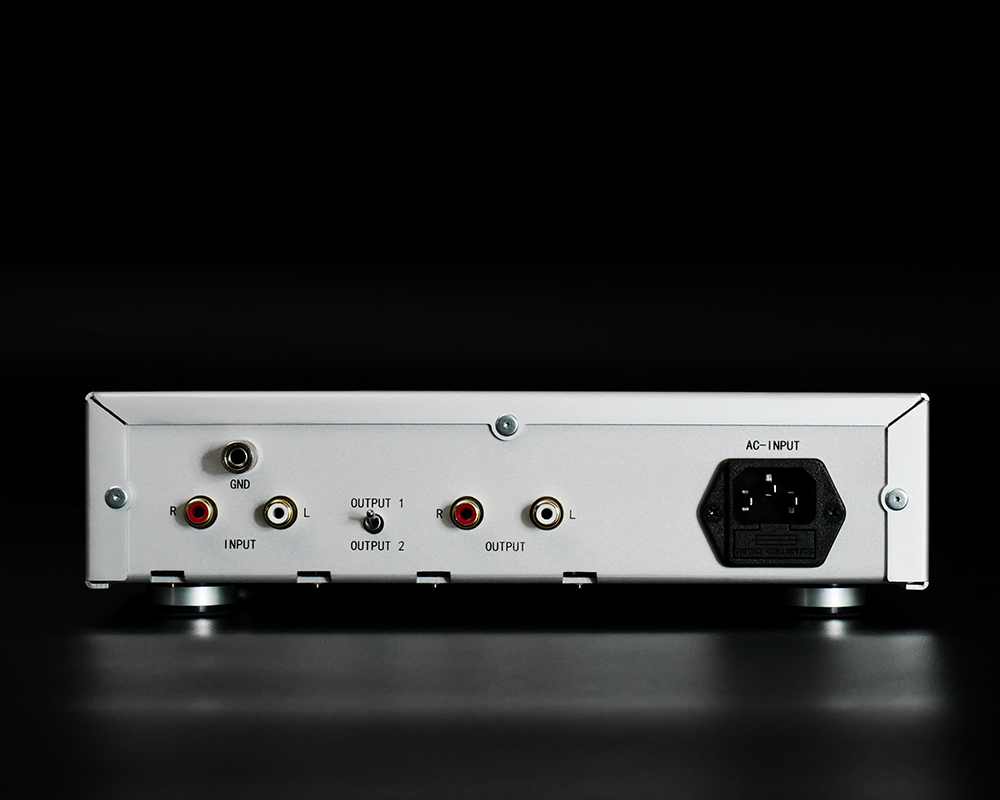

| Input Terminal | RCA |
| Output Terminal | RCA (with switch for two output curves) |
| Size | W26cm×H6.9cm×D19.5cm |
| Weight | 1.86kg |
DOWNLOADS
| DS Audio E3 Instruction Manual | |
| DS Audio E3 Catalog |
