CLEARAUDIO NANO V2 PHONO STAGE
“For such a little fellow, sonically the Nano has the heart of a lion and gives its all in every performance.” - Editor’s Choice HiFi News UK
"Horns were handled wonderfully on a Count Basie LP, with huge dynamics and powerful slam…Concept with Satisfy Black, Maestro v2 MM cartridge, and Nano phono stage for Count Basie…” - Jason Victor Serinus, Stereophile USA
ABOUT
The Nano V2 phono stage delivers high-end performance with a small footprint at an affordable price. Combined with our Concept turntable, it is your entry to high-end analog sound.

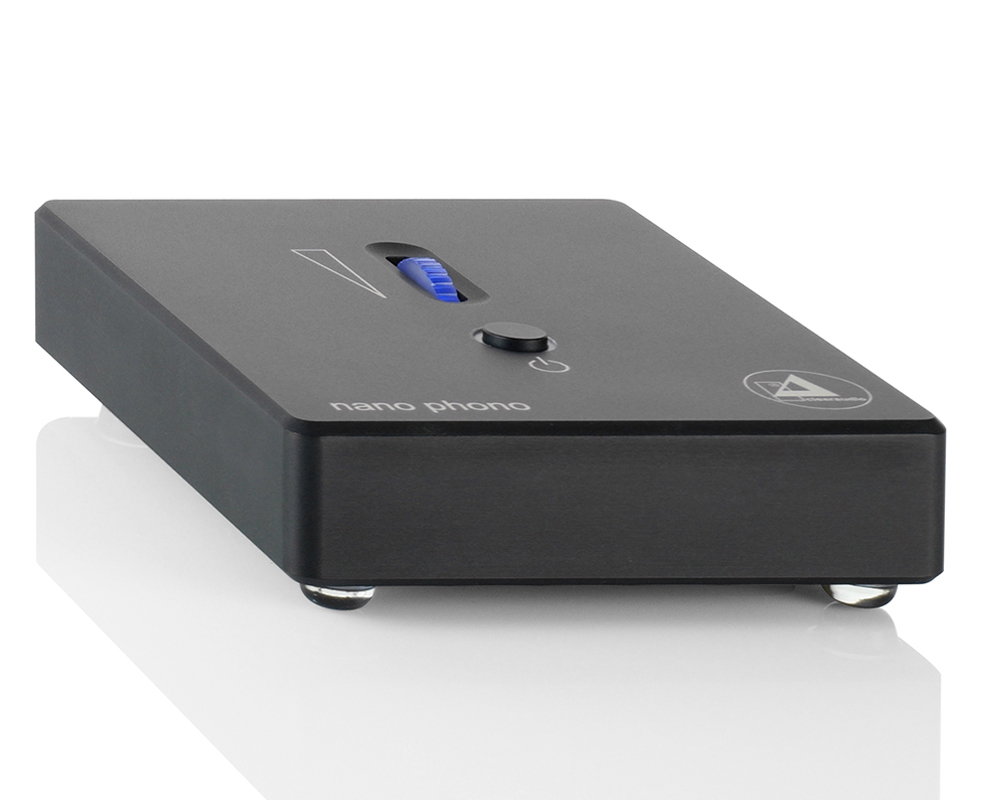

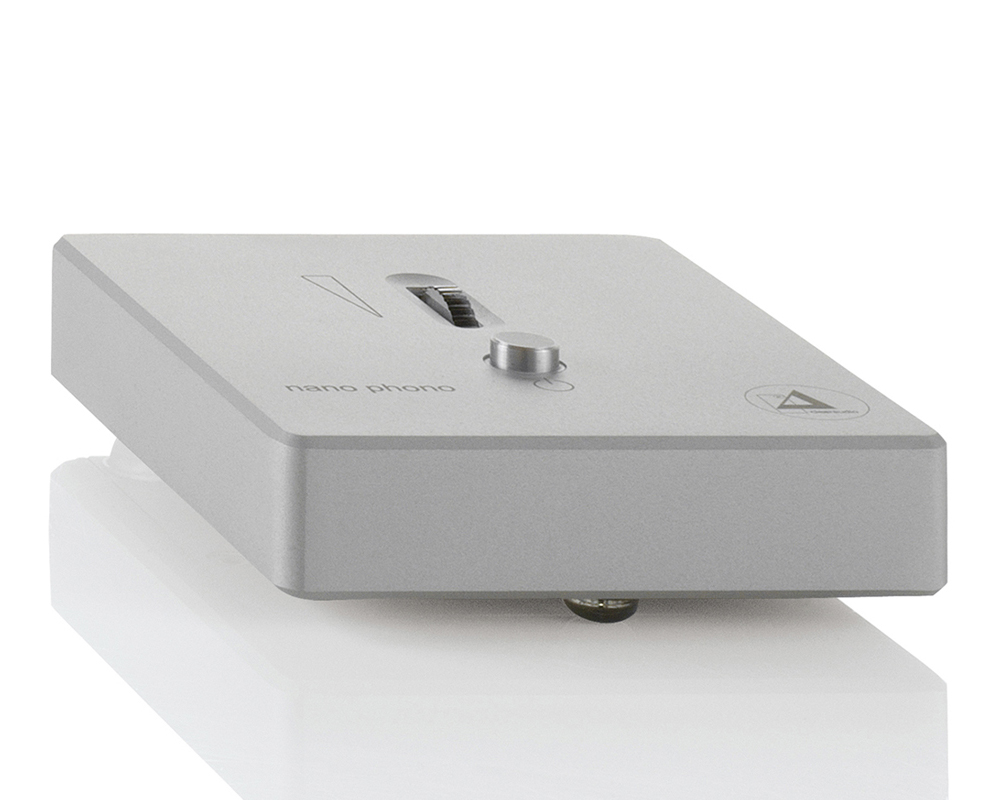

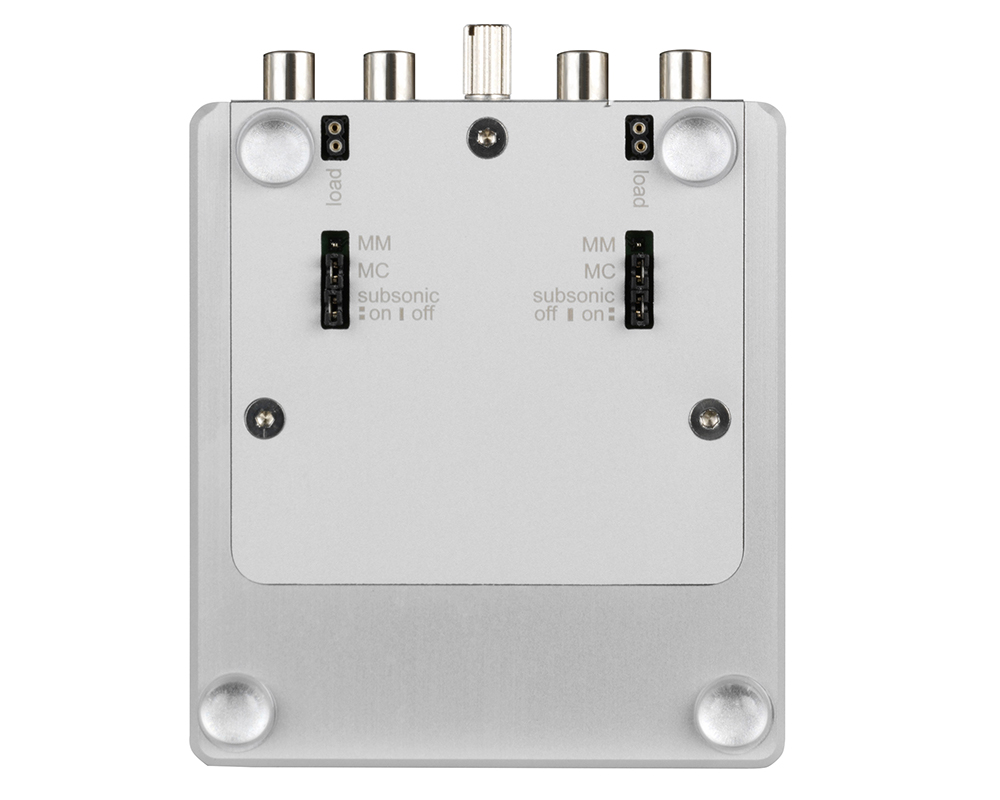

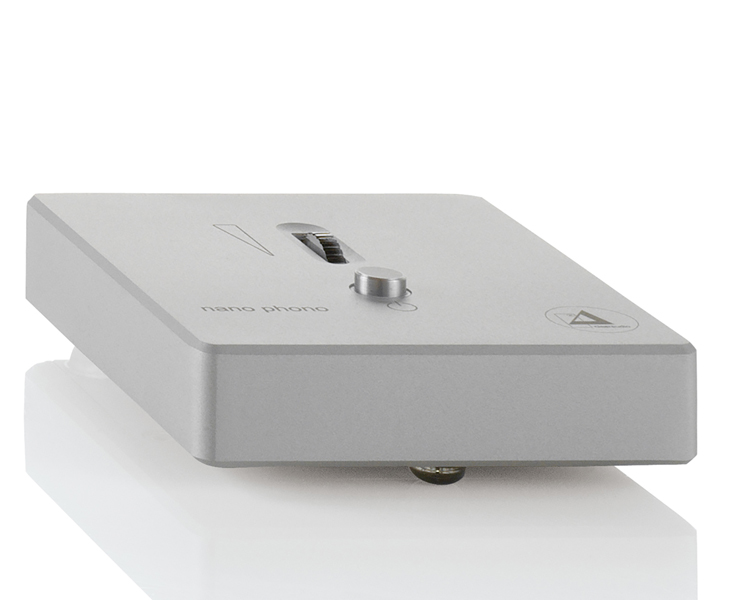

The Nano V2’s small footprint lets you place it on the same shelf as the Concept and its very short signal paths create noise-free music reproduction. The printed circuit board is encased in a solid CNC-machined, resonance-free aluminum chassis. The latest sophisticated surface-mount technology is used in conjunction with precision electronic components, such as Burr-Brown (Texas Instruments) integrated circuits. The fully dual-mono design features separate left and right switches for moving magnet/moving coil, input loading and sub-sonic filter. A top-mounted power on/off button and level control allows level-matching between phono and other line inputs, The thumb wheel level control adjusts the volume of the headphones in the HP version.
SPECIFICATIONS
| Mode | Moving Magnet | Moving Coil |
| Amplification | MM 34dB | MC 54dB |
| Input Load | MM (47kΩ / 220pF) | MC (Individual) |
| RIAA Accuracy | ± 0.4dB @ 20Hz - 50kHz |
| THD | < 0.04% |
| Signal-to-Noise Ratio | MM 81dB ("A" weighted) | MC 70dB ("A" weighted) |
| Headroom | 18dB / MC |
| Maximum Output Voltage | 10v (at 1kHz) |
| RIAA | Time Delay: 75μs / 318μs / 3180μs |
| Channel Separation | > 80dB (at 1kHz) |
| Output Impedance | 75Ω |

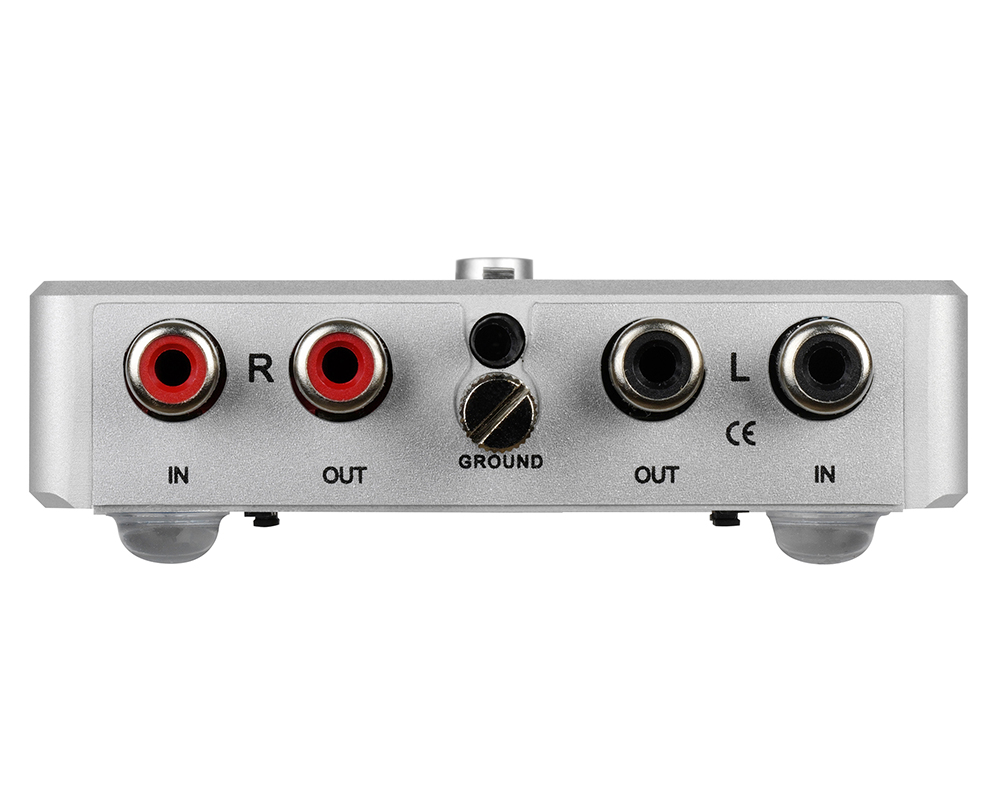

| Inputs | Unbalanced (RCA) |
| Outputs | Unbalanced (RCA) |
| Power Consumption | ON: 2.3 watts | STANDBY: < 0.3 watts | OFF: 0.0 watts |
| Power Supply | ± 18v DC/300mA (external power supply) |
| Total Weight | Approx. 1.1 lbs |
| Dimensions | 3.34" x 4.17" x .98" |
| Warranty | 3 years |
DOWNLOADS
| Nano V2 - User Manual |
