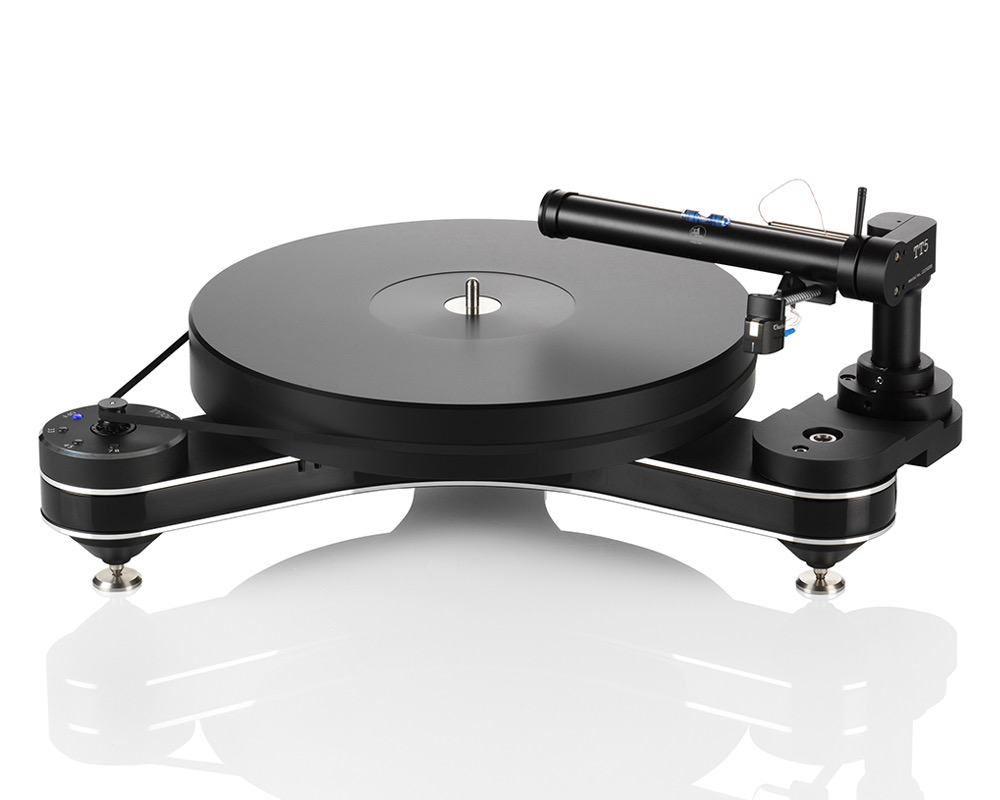

CLEARAUDIO INNOVATION BASIC WOOD

Inno_Basic_Wood_speed_control_webInno_Basic_Acrylic_SquareInno_Basic_POM_Square

Sharing design and construction features with our Innovation series, the new Innovation Basic Wood turntable features a 38mm-thick, dynamically-balanced POM platter. The optimally designed tri-star chassis minimizes resonance in the audible range while delivering maximum stability. The Ceramic Magnetic Bearing (CMB) and Optical Speed Control (OSC) combine with Clearaudio’s custom high-torque DC motor for excellent speed stability. The Innovation Basic features a second tonearm mount and is available in silver or black aluminum with Natural or Piano Black Lacquer panzerholz wood.

About

The Innovation Basic Wood is based on the technology of the Clearaudio Innovation Wood turntable, but uses a single plinth, smaller plinth as opposed to the stainless steel sub-platter found on the Innovation Wood. Its resonance-optimized chassis shape is based on the proven success of Clearaudio’s three-point design — a combination of Panzerholz, aluminum layers, and aluminum pods. The Innovation Basic Wood uses Clearaudio’s patented CMB (Ceramic Magnetic Bearing) technology, where the platter magnetically levitates on an inverted bearing attached to a low-friction ceramic shaft. The high-torque DC motor is equipped with electronic OSC (Optical Speed Control). The high-density, dynamically balanced 38mm polyoxymethylene (POM) platter provides excellent dimensional stability. The Innovation Basic Wood is dual tonearm capable.

Additional Information

Construction details

Resonance-optimized chassis shape, belt-driven with self-adjusting speed control, dynamically balanced 70 mm / 2.75″ POM platter

Speed ranges

33 1/3, 45, and 78 RPM, convenient electronic controls

Motor

High-torque DC motor

Bearing

CMB (Ceramic Magnetic Bearing)

Platter

CNC-machined POM (polyoxymethylene), 70 mm thickness

Speed accuracy

less than +- 0.05 %

Weight

26 lbs without tonearm and power supply

Dimensions

18.86″ x 19.09″ x 5.55″

Other special features

OSC (optical speed control) in real time via infrared sensor, playback with two tonearms possible

Warranty

5 years
